Arralis introduces X-TR-DL-78, an X-Band Transceiver Module with an Rx frequency from 7 to 7.5 GHz and a Tx frequency from 8 to eight.5 GHz.
In terms of satellite tv for pc communications the scalability of gadgets and used know-how is essential to think about. The gadgets included are required to be as light-weight as attainable. Contemplating the communication a part of a satellite tv for pc, utilizing a extremely configurable transceiver can change into a really perfect resolution.

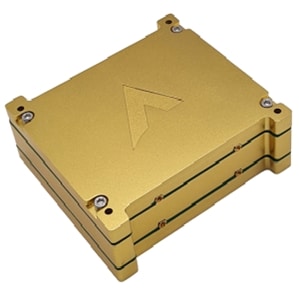

Arralis has launched a fully-integrated standalone transceiver resolution, X-TR-DL-78, an X-Band Transceiver Module with an Rx frequency from 7 to 7.5 GHz and a Tx frequency from 8 to eight.5 GHz. It operates as a Up/Down converter for Low Earth Orbit (LEO). The transceiver operates in twin conversion super-heterodyne mode utilizing two LO’s permitting for higher rejection of undesirable frequencies.
The module consists of a high-precision clock for LO era which can be utilized as a reference for different modules or as a lock to an exterior system reference. The module may also be mixed with a modem/Software program Outlined Radio (SDR) to allow a completely practical X-band satellite tv for pc communication system.
X-TR-DL-78 delivers a saturated output energy of two W with a conversion achieve of 30 dB and a section noise of -123 dBc/Hz at 1 MHz offset on the transmitter facet. Whereas, on the receiver facet, this converter has a conversion achieve of 30 dB with a noise determine of 1.8 dB and has a section noise of -123 dBc/Hz at 1 MHz offset. The gadget works on a DC provide of 12 to 36 V in Tx mode and 6 to 42 V in Rx mode. The transceiver dimensions measure 96 x 91 x 33 mm with an SMPM edge mount connector.
FEATURES
- Tx RF Frequency : 8 to eight.5 GHz
- Tx IF Frequency : 200 to 700 MHz
- Rx RF Frequency : 7 to 7.5 GHz
- Rx IF Frequency : 200 to 700 MHz
- LO Reference Frequency : 10 MHz
- Output Energy : Linear: 1 W, Psat: 2 W
- Spurious : -60 dBc
- Tx and Rx Connector : SMA
- Working temperature : -40 to 70 Diploma C
- Grade : Business, House
-
Utility : Excessive velocity knowledge communications, House communications, IOT, Safety
